【原神】奇怪的双键盘逻辑

讨论分享
, , ,
1

这大概是最奇怪的原神操作键盘了

为了避免自己可怜的笔记本出现同学那样打油的现象，专门使用了一个外置的数字小键盘避免频繁使用wasd键导致键盘打油与不灵敏

2023年版本

下图为按键原始图：

pkTtF76.md.png680×456 45.4 KB

附：ahk

;@Ahk2Exe-SetCompanyName None
;@Ahk2Exe-SetCopyright MIT License
;@Ahk2Exe-SetDescription ReMapKeyBoard for GS
;@Ahk2Exe-SetVersion 1.2.4.0
;@Ahk2Exe-SetName ReMapKeyBoard
;@Ahk2Exe-SetMainIcon GenshinKeyIcon.ico

#NoTrayIcon
#SingleInstance force
full_command_line := DllCall("GetCommandLine", "str")
if not (A_IsAdmin or RegExMatch(full_command_line, " /restart(?!\S)")){
    try{
        Run '*RunAs "' A_ScriptFullPath '" /restart'
    }
    ExitApp
}

; 使用A键召唤Win键
F7 & A:: Send "{LWin}"

#Hotif WinActive("原神")

; 使用空格键控制Alt键
F7 & Space:: Send "{LAlt down}"
F7 & Space Up:: Send "{LAlt up}"
; 使用T键控制Control键
F7 & T:: Send "{Control down}"
F7 & T Up:: Send "{Control up}"
; 使用S键控制下树X键
F7 & S:: Send "X"
; 使用Y键控制同意Y键
F7 & Esc:: Send "Y"
; 使用W键控制地图M键
F7 & W:: Send "M"
; 使用F键控制队伍L键
F7 & F:: Send "L"
; 使用E键控制任务追踪V键
F7 & E:: Send "{V down}"
F7 & E Up:: Send "{V up}"
; 使用LShift键控制道具Z键
F7 & LShift:: Send "{Z down}"
F7 & LShift Up:: Send "{Z up}"

; 使用R键控制队伍5键
F7 & R:: Send "5"
; 使用1键控制背包B键
F7 & 1:: Send "B"
; 使用2键控制角色C键
F7 & 2:: Send "C"
; 使用3键控制任务J键
F7 & 3:: Send "J"
; 使用4键控制联机设置F2键
F7 & 4:: Send "{F2}"
; 使用D键控制好友O键
F7 & D:: Send "O"

; 使用下侧键控制Yap的启动与关闭
;F7 & XButton1:: {
;    if (0 != ProcessExist("yap.exe")){
;        Send "!0"
;    }else{
;        Run "yap.exe"
;    }
;}

; 使用上侧键键转圈圈
F7 & XButton2::{
    Sleep 125
    startTime := A_TickCount
    Loop{
        currentTime := A_TickCount - startTime
        DllCall("mouse_event", "uint", 1, "int", 0, "int", 50, "uint", 0)
        DllCall("mouse_event", "uint", 1, "int", 400, "int", 0, "uint", 0)
        Sleep 2
        if (GetKeyState("Space")||(currentTime>=3000)){
            break
        }
    }
}

/*
以下是 http://www.keyboard-layout-editor.com/ 的键盘布局备份

[{h:2},"Esc\n\n\nY","1\n\n\nB","2\n\n\nC","3\n\n\nJ","4\n\n\nF2",{h:2},"XBtn2\n\n\nAHK"],
[{x:1},"Q\n\n\nYap","W\n\n\nM","E\n\n\nV","R"],
["T\n\n\nCtrl","A\n\n\nWin","S\n\n\nX","D\n\n\nO","F\n\n\nL",{h:2},"XBtn1\n\n\nYap"],
[{w:2},"Shift\n\n\nZ",{c:"#fff9a7",a:7,f:6,w:2},"F11",{c:"#cccccc",a:4,f:3},"Space\n\n\nAlt"]
*/

更新

（2026.01.20）

从 capsicain 更换为了 kanata 作为映射小键盘的工具，大幅拓展了键盘功能

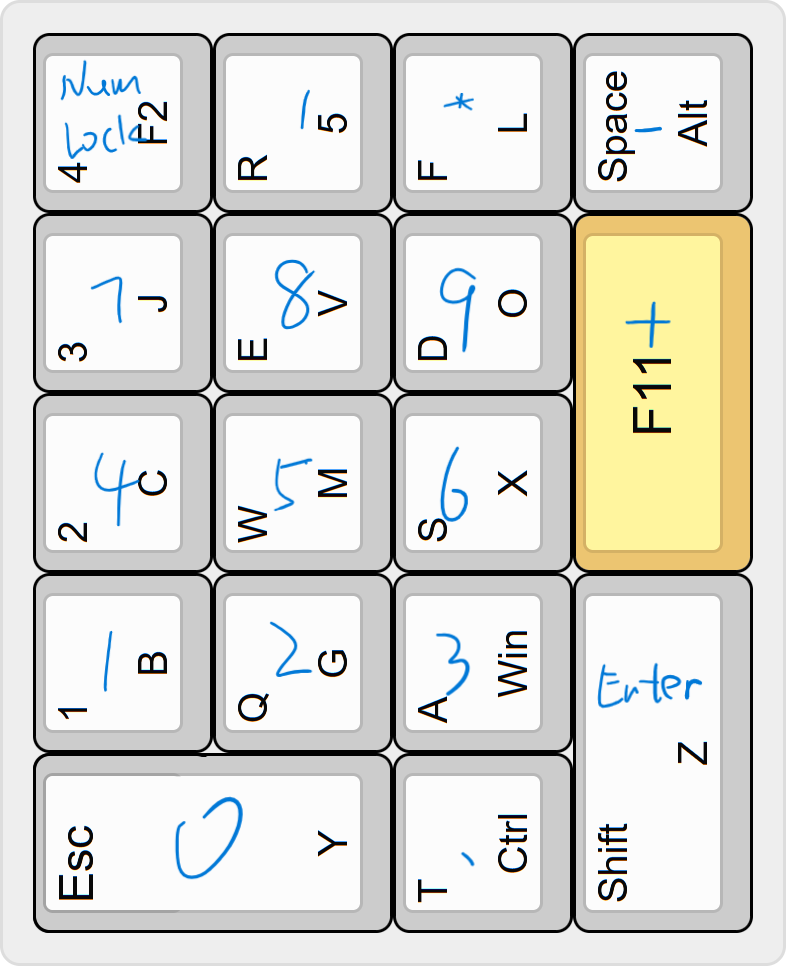

键位图

红色为长按，各按钮左上方为默认按键，右下方为按住黄色按键后的键位

Screenshot 2026-01-17 at 10-23-32 Keyboard Layout Editor
Screenshot 2026-01-17 at 10-23-32 Keyboard Layout Editor1376×944 44.2 KB

配置文件

详见下方代码（文件名为 genshin.kdb，使用了 kanata_windows_gui_wintercept_cmd_allowed_x64）

;; defsrc 定义你键盘上的物理按键布局
;; 这里列出了你要用到的主要区域，如果你的键盘不同，可能需要微调
(defsrc
  esc  1  2  3  4
       q  w  e  r
  t    a  s  d  f
   lsft   slck  spc
  nlk
)

;; defalias 定义这一层的逻辑
;; 这里的 200 是判定时间（毫秒）
(defalias
  ;; 按住 Caps 切换到 genshin_layer 层
  mod9 (layer-while-held genshin_layer)

  ;; tap-hold: 短按是 esc，长按是 lalt
  esc_alt (tap-hold 200 200 esc lalt)

  ;; 超过 200ms 还没松手，或者配合按下了其他键，才会判定为 LCtrl。
  t_ctrl (tap-hold 200 200 t lctl)
)

;; deflayer 定义默认层 (Base Layer)
(deflayer default
  @esc_alt  1   2   3   4
            q   w   e   r
  @t_ctrl   a   s   d   f
     lsft       @mod9   spc
  XX
)

;; deflayer 定义 Caps 按下后的层 (对应你的 COMBO 设置)
;; 透明键 (_) 代表保持原层设置，XX 代表禁用
(deflayer genshin_layer
  _    b    c    j    f2
       y    m    v    5
  z    lmet x    o    l
     g        _       f17
  XX
)

;; defcfg 配置
(defcfg
  ;; 如果你只定义了部分按键，开启这个选项可以让其他未定义的按键正常工作
  process-unmapped-keys yes
  windows-interception-keyboard-hwids (
  "72, 0, 73, 0, 68, 0, 92, 0, 86, 0, 73, 0, 68, 0, 95, 0, 51, 0, 48, 0, 54, 0, 49, 0, 38, 0, 80, 0, 73, 0, 68, 0, 95, 0, 52, 0, 55, 0, 55, 0, 49, 0, 38, 0, 82, 0, 69, 0, 86, 0, 95, 0, 48, 0, 49, 0, 57, 0, 50, 0, 38, 0, 77, 0, 73, 0, 95, 0, 48, 0, 49, 0, 38, 0, 67, 0, 111, 0, 108, 0, 48, 0, 49, 0, 0, 0, 72, 0, 73, 0, 68, 0, 92, 0, 86, 0, 73, 0, 68, 0, 95, 0, 51, 0, 48, 0, 54, 0, 49, 0, 38, 0, 80, 0, 73, 0, 68, 0, 95, 0, 52, 0, 55, 0, 55, 0, 49, 0, 38, 0, 77, 0, 73, 0, 95, 0, 48, 0, 49, 0, 38, 0, 67, 0, 111, 0, 108, 0, 48, 0, 49, 0, 0, 0, 72, 0, 73, 0, 68, 0, 92, 0, 86, 0, 73, 0, 68, 0, 95, 0, 51, 0, 48, 0, 54, 0, 49, 0, 38, 0, 85, 0, 80, 0, 58, 0, 48, 0, 48, 0, 48, 0, 49, 0, 95, 0, 85, 0, 58, 0, 48, 0, 48, 0, 48, 0, 54, 0, 0, 0, 72, 0, 73, 0, 68, 0, 95, 0, 68, 0, 69, 0, 86, 0, 73, 0, 67, 0, 69, 0, 95, 0, 83, 0, 89, 0, 83, 0, 84, 0, 69, 0, 77, 0, 95, 0, 75, 0, 69, 0, 89, 0, 66, 0, 79, 0, 65, 0, 82, 0, 68, 0, 0, 0, 72, 0, 73, 0, 68, 0, 95, 0, 68, 0, 69, 0, 86, 0, 73, 0, 67, 0, 69, 0, 95, 0, 85, 0, 80, 0, 58, 0, 48, 0, 48, 0, 48, 0, 49, 0, 95, 0, 85, 0, 58, 0, 48, 0, 48, 0, 48, 0, 54, 0, 0, 0, 72, 0, 73, 0, 68, 0, 95, 0, 68, 0, 69, 0, 86, 0, 73, 0, 67, 0, 69, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0"
  )
)
1 个赞
2

我有点没看明白

3

非常好脚本，使我的颈椎旋转，爱来自小众软件论坛 :rofl:

image786×966 68.4 KB

（有点好奇，这么转着用，键帽不会变得难按吗

2 个赞
4

我就说看晕了，居然手躺着的….

5

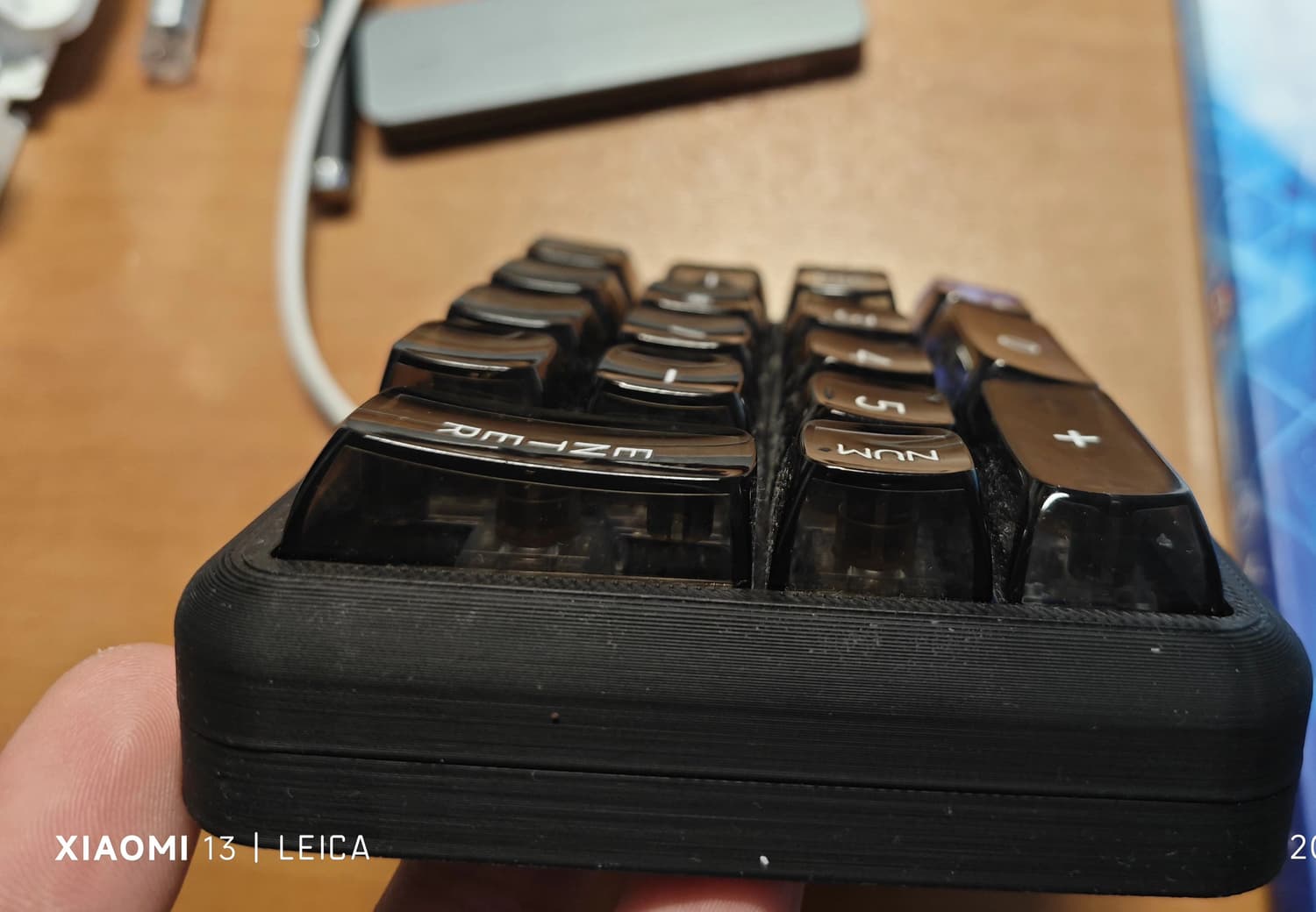

把键帽全都改了一遍（

这样拍大抵能看出来吧

IMG_20240222_003211
IMG_20240222_0032111500×1040 91.1 KB

IMG_20240222_003237
IMG_20240222_0032371500×844 88.1 KB

6

看了这个键盘键位，我想到了以前按键手机的九宫格输入法。现在电脑上有没有九宫格输入法。这样的话似乎可以用更少的键就能打字了，甚至一个小键盘+一点快捷键就能流畅打字了。智能联想这么发达，速度应该也不慢。。 :rofl:

7

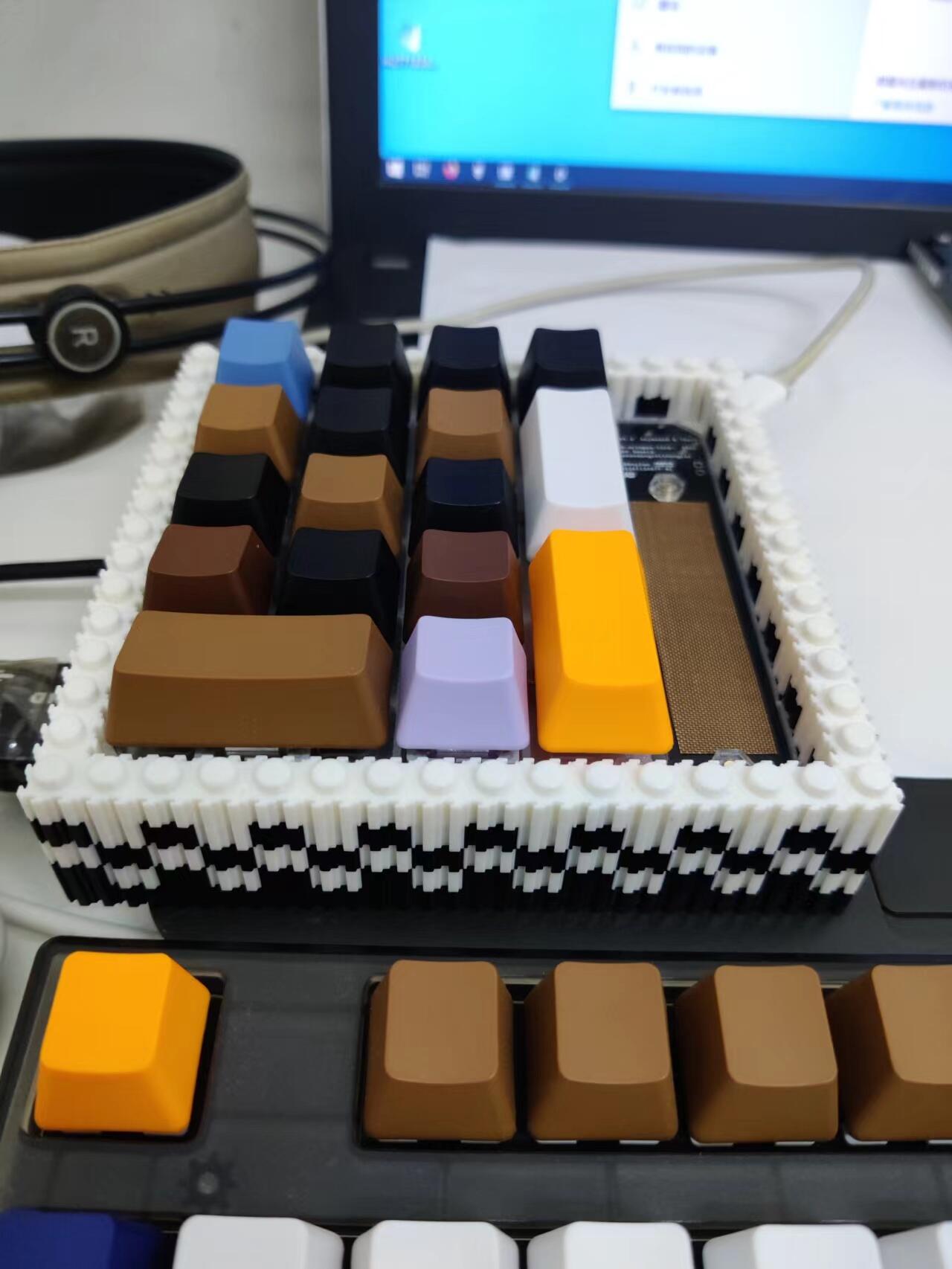

我有个丐17数字键盘。吃灰了我找找。 :smirk:

微信图片_20240227155457
微信图片_202402271554571280×1706 129 KB

再晒一下我的大键盘 :smiling_face:

微信图片_20240227155504
微信图片_202402271555041706×1280 161 KB

8

image908×902 47.3 KB

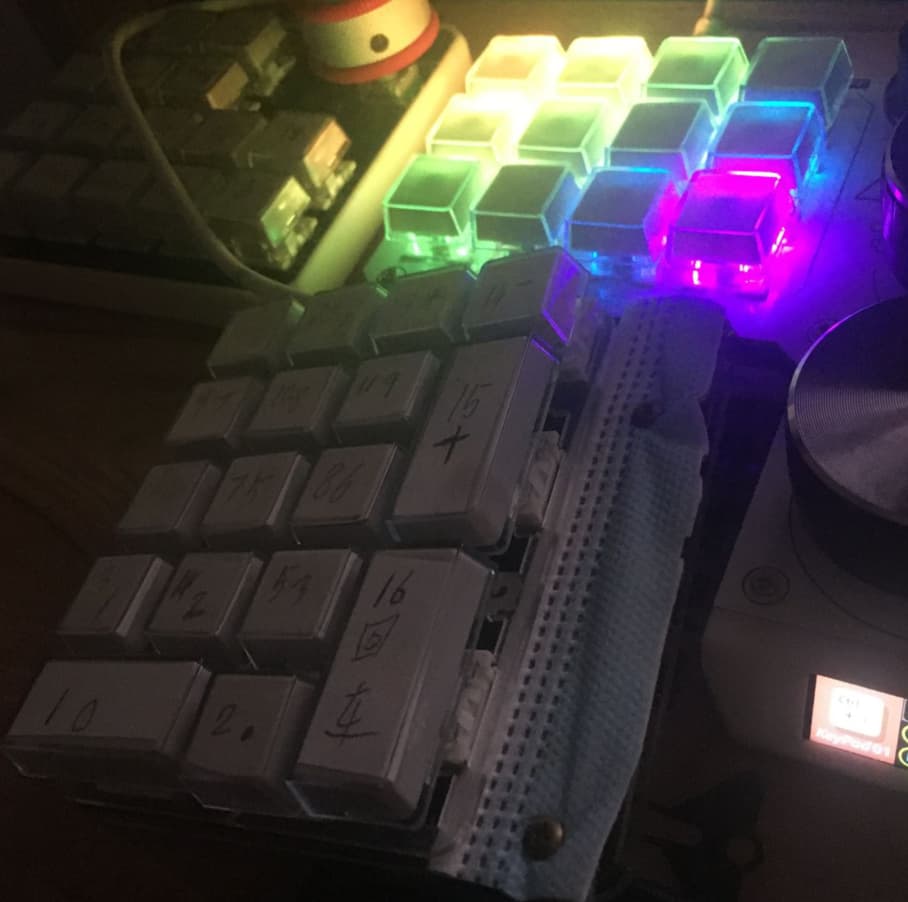

我也有个丐17 裸板 触摸条这边打滑 我弄了半截口罩 的布条弄上面不打滑了

9

买个手柄吧，比键盘操作好多了

10

我的就是 最丐17pro

轻薄本，本来也没想要啥游戏操作的极致体验，所以无所谓了

11

更新了一下键位和转圈圈的代码

12

所以为什么不能换键帽？

13

可以啊，纯粹是我懒 2333

1 个赞
